LiFep04 mega-pack for industrial applications
Resilient, Reliable, Quick Delivery, Energy Station
With a capacity of 500kWh@20ft, this solution is ideal for most utility and C&I applications like solar power plants. Also suitable for hospitals and heavy industry where energy stability is vital. The integrated and easy-to-install BESS can be easily connected and matched with all South African 3 phase systems, while the advanced BMS and cloud-based operation platform allows high precision and real time control via manual and AI based processes

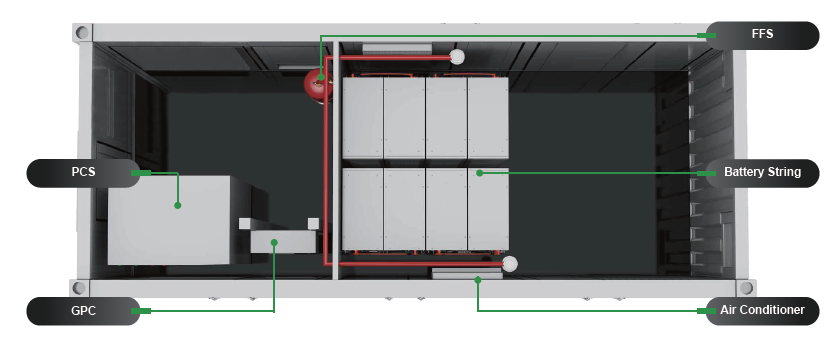

The all-in-one, containerised battery energy storage system
More Energy: Pack-level Optimization.
All-in-one Design: AC/DC All-in-one Design Reducing Initial Investment.
Simple Operation and Maintenance: No periodic balancing. Minimal expert site visits.
Safe & Reliable: Modular Design, High Availability.
Typical Product Configuration
Nominal Capacity: 552KWh
AC Connection: 3-Phase+PE
Isolation: Non-isolation
Grid-connected voltage: 400V
Dimensions: W6M x D2.4M x H2.6M;

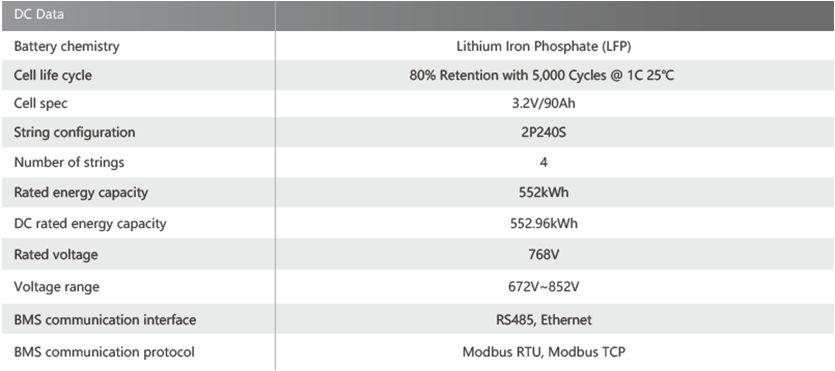

DC Data

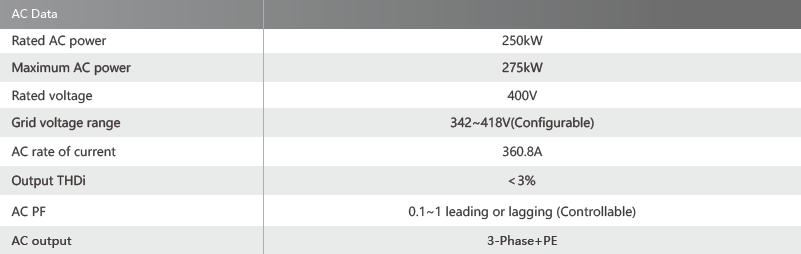

aC DATA

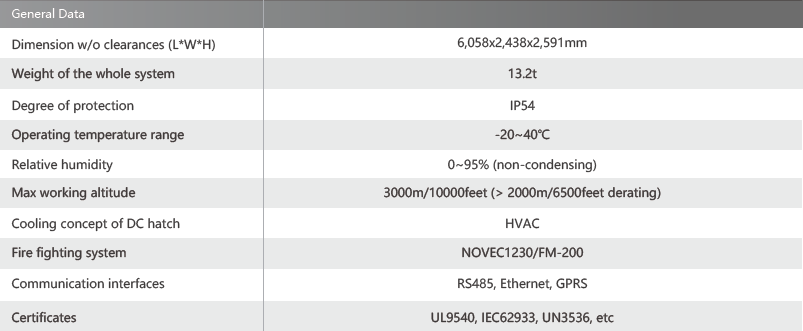

general data

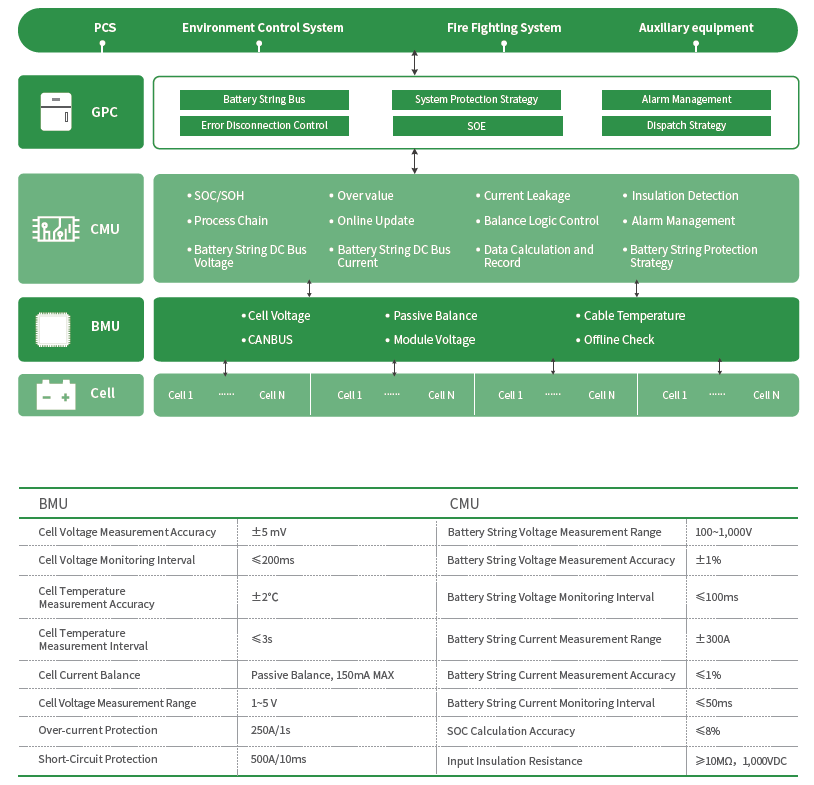

BMS with Real-time Passive Balance
The brains of the battery. Protects the cells against extreme temperature events, power surges, brown outs, short circuiting, over-charging and over-discharging. This ensures long life and trouble-free operation in the worst South African operating conditions.
